台湾JGH久冈J-SCCA顺序阀(直动型附止回阀)

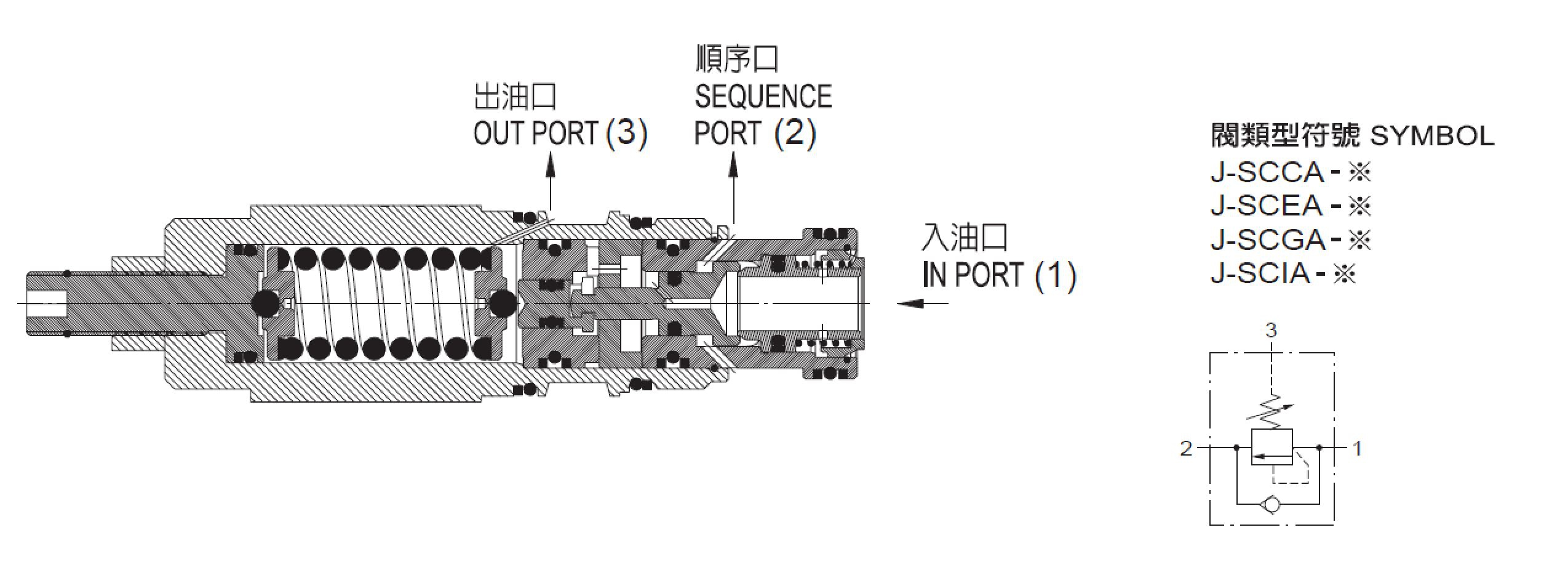

SYMBOL
J-SCCA-※ J-SCEA-※
J-SCGA-※ J-SCIA-※

MODLE	MAX.OPERATING PRESSURE kgf/cm²	PRESSURE TYPE	PRESSURE ADJ.RANG kgf/cm²	MAX. FLOW l/min	WEIGHT kg
J-SCCA-※	350	A B C D W	A:35-210 B:20-105 C:140-420 D:14-55 W:55-315	60	0.17
J-SCEA-※				120	0.3
J-SCGA-※				240	0.64
J-SCIA-※				480	1.31

J	-	SCCA	-	A	-	L

								KNOB TYPE L:INNER HEXANGULAR BOLT ROD ADJUST K:HAFT TURNING KNOB BOLT ROD ADJUST.

								A:35-210 B:20-105 C:140-420 D:14-55 W:55-315

								VALVE SIZE SCCA:60 l/min SCEA:120 l/min SCGA:240 l/min SCIA:480 l/min

								SERIES NUMBER
