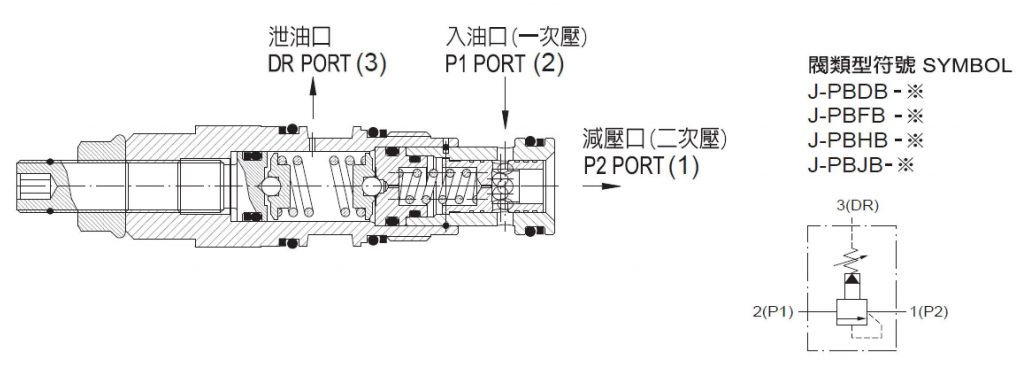

SYMBOL J-PBDB-※ J-PBFB-※ J-PBHB-※ |
![]() |
SPECIFICATION
MODLE | MAX.OPERATING PRESSURE kgf/cm2 |
PRESSURE ADJ. RANGE kgf/㎝2 |
MAX. FLOW l/min |
WEIGHT kg |
---|---|---|---|---|
J-PBDB-※ | 210 |
A : 7-210
B : 3.5-105 W : 10.5-315 |
40 | 0.17 |
J-PBFB-※ | 80 | 0.29 | ||
J-PBHB-※ | 160 | 0.64 |
HOW TO ORDER
J | - | PBDB | - | A | - | L | ||
---|---|---|---|---|---|---|---|---|
![]() |
KNOB TYPE L : LEAKAGE PROOF, BOLT ROD ADJUST. |
|||||||
![]() |
PRESSURE ADJUSTING RANGE A : 7-210 kgf/㎝2 B : 3.5-105 kgf/㎝2 D : 2-60 kgf/㎝2 |
|||||||
![]() |
VALVE SIZE PBDB : 40 l/min PBFB : 80 l/min PBHB : 160 l/min |
|||||||
![]() |
SERIES NUMBER |
